PostSubject: Knowledge in Power   Wed Dec 23, 2009 9:38 am

1. What parts can be upgraded in your AEG? In a normal AEG many parts
can be changed or upgraded. Here is a list of them and what they do.

2. Hop Up Bucking
is the part that puts back spin on the bb. Marui guns come with decent
ones but other companies make better ones. Systema, Guarder, prometheus
and Fire Fly are the best. Fire Fly makes a special one with 3 nubs in
the bottom to create a better spin.

3. Hop Up Chamber.
The Hop Up Chamber can be changed for more consistency. The stock
plastic ones in Marui guns are ok but are not as good as ones made by
Systema. King arms and Prometheus are said to be the best.

4. Barrel.
Some people change to barrels longer or tighter than their stock ones.
The tighter the barrel the better. Don't get one too tight if you use
bad quality BBs, or it will jam. Most AEGs come stock with 6.08mm
diameter barrels. Systema make 6.04mm, Star make 6.05mm, Guarder make
6.04mm, prometheus make 6.03mm, Deepfire makes 6.04mm, Madbull makes
6.03mm, KM makes 6.04 with a special TN coating, which increases the
FPS by 10+-, Dees Custom make 6.01mm, and PDI the best make 6.01mm from
steel.

5. Spring.
The stronger your spring, the higher the velocity the piston can be
forced forward at. Don't fit a high powered spring with standard
internals as you are likely to damage the gears or piston. Guarder and
PDI springs are best. Systema can crack easily but prometheus is also
good, although their "unique" coloring wears off after a while,
damaging your gears. Most springs besides PDI are rated in metres per
second, so a M100 spring is 100 metres per second or 328 feet per
second.

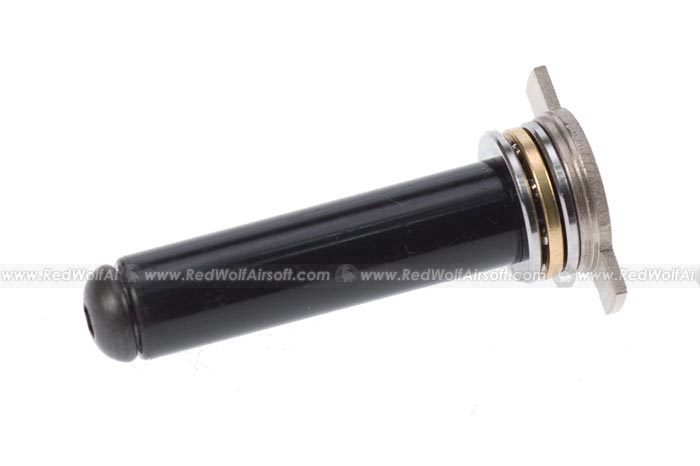

6. Spring Guide.
This stops the spring from jumping into the gear case. Marui guns come
with plastic guides as standard but Guarder, Systema and Prometheus
make steel ones. If it has spacers it will increase your muzzle
velocity.

7. Cylinder.
The cylinder is the area in which the air is compressed before being
forced down the barrel. Bigger cylinders let you use a longer barrel.
You can also get telfon-coated cylinders which will give a slight
increase of Rate Of Fire (ROF), to my knowledge about 100 rounds per
minute. This part isn't upgraded much as most guns come with good ones.
For a budget gun one get a teflon coated Area 1000 cylinder.

8. Cylinder Head. Changing this part will either silence your gun (if you get a Systema or Angel damped head) or give a better air seal.

9. Air Nozzle.
The air nozzle is the part that pushes the bb into the Hop Up Chamber.
It is also needed to seal the airflow from the cylinder head to the BB,
so some have internal 'O' rings like Guarder.

10. Piston.
The piston compresses the air in the cylinder. It is essentially a
flat-toothed gear. It is wound back by the motor and then forced
forward at high speed by the spring, compressing the air in front of
it. It therefore is subject to tremendous pressure. Metal pistons are
good for Semi-Auto AEGs but if fired in Full Auto they may strip the
gears. G&P, Guarder,and Deep Fire make good ones. Prometheus is OK
with some mods. The Super Core Piston made by System (not to be
confused with Systema) is probably the best of all, but is hard to find
outside Japan.

11. Piston Head.
The piston head seals the air into the cylinder. You can get good and
bad ones. Classic Army and most clones generally have poor piston
heads. You can also get silent ones to quiet your gun and bearing ones
to increase the muzzle velocity. G&P, Systema, and Prometheus make
good ones.

12. Gears.
The gears are a very important and expensive part of the rifle. Don't
be tempted to buy cheap gears, as you will probably end up paying a lot
more to fix the gearbox when they break. If you are upgrading to high
powered springs or hi-speed/torque motors opt for steel gears. If you
want high ROF you can buy high speed gears from Prometheus, Systema and
Guarder. Systema, Guarder and Prometheus make high torque as well. Most
of these are helical which means the teeth are at an angle. If you use
these you need a half toothed piston. They are also harder to shim
correctly. You have 3 gears, the sector, bevel and spur gears.

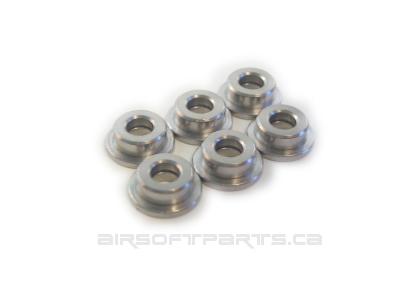

13. Bushings.
The bushes keep the gears in places and are what the gears rotate on.
If they break the gears will probably strip. The bigger the bushing the
better. Most guns ship with plastic 6mm bushes fitted. If you upgrade
go for metal bushes and if you are looking for higher ROF or torque,
get a new gearbox casing that will take 7mm or 8mm bushes.

14. Shims.
The shims are used to keep the gears aligned and correctly meshing.
Incorrect shimming will lead to increased gear wear or failure.

15. Tappet plate.
The tappet plate pulls the air nozzle back to let the BB in. If it
snaps your gun will not feed. TM stock and ANGEL are the best. A
Chinese brand called World-Element also makes decent ones for a good
price.

16. Selector Plate. This part rarely breaks. It can be upgraded for more electrical stability.

17. Anti-Reversal Latch. This latch stops the gears from spinning backwards and damaging the gun. Systema and Prometheus make aftermarket versions.

18. Cut Off Lever. This stops the gears so you can fire Semi-Auto. If it does break or wear you will only have Automatic fire.

19. Trigger mechanism. If you fire too much on Full Auto the mechanism can burn out and your gun will cease to fire.
Systema and Guarder make aftermarket versions. Keep the contacts clean to avoid short-circuits.

20. Sector Chip.
Guns don't come stock with these but they essentially keep the tappet
plate back longer so the BBs feed better. They have no negative side
effects and will not break.

21. Motor.
You can opt for hi-speed or torque. Don't put a hugely powerful motor
in a standard gun and hope it will work. You will strip the gears or
piston. The Systema Magnum and Turbo are excellent. The G&P M120
and M160 are great as well.

22. Battery.
The higher the voltage, the higher your ROF will be. The higher the
Milliampere-Hour rating (mAH), the more BBs you can fire per charge (as
a rule of thumb for a fairly standard gun, 1 mAH = 1 shot). Intellect,
G&P, Sanyo and Elite are great. Most chinese guns come with poor
batteries. Do not go for the highest power battery you can find
straight away, as the voltage may be too high for your current setup
and may damage components. Search the net and airsoft forums for advice
on battery selection. 12volt= INSANE performance. Many guns even
upgraded cannot handle these batteries. KWA KM4A1 can handle a 16volt
battery... but the BB's hit each other in the barrel.

_________________


Back to top Go down
View user profile
playboy
Sergeant
avatar

Male
Number of posts : 589
Age : 31
Location : baguio
Job : law student
Forum XP points : 4199
Registration date : 2009-03-18

PostSubject: Re: Knowledge in Power   Sat Jun 19, 2010 12:58 am

very usefull papadhie akoy lubhang naliwanagan ...

salamat sir ..



lets make love not war ....
Back to top Go down
View user profile http://facebook- bluejems@ymail.com
okami
P.R.O.
avatar

Male
Number of posts : 532
Age : 36
Location : Sto. Tomas, Baguio City/ University of Baguio
Job : Office Staff
Forum XP points : 4009
Registration date : 2009-08-11

PostSubject: Re: Knowledge in Power   Sat Jun 19, 2010 8:52 am

study

thank you sir papadhie...

i am ver much enlightened...

bright bright bright
Back to top Go down
View user profile
playboy
Sergeant
avatar

Male
Number of posts : 589
Age : 31
Location : baguio
Job : law student
Forum XP points : 4199
Registration date : 2009-03-18

PostSubject: Re: Knowledge in Power   Sat Jun 19, 2010 10:36 am

okami nmn ininglish mo lang sinabi ko eh hmfp
Back to top Go down
View user profile http://facebook- bluejems@ymail.com
okami
P.R.O.
avatar

Male
Number of posts : 532
Age : 36
Location : Sto. Tomas, Baguio City/ University of Baguio
Job : Office Staff
Forum XP points : 4009
Registration date : 2009-08-11

PostSubject: Re: Knowledge in Power   Sat Jun 19, 2010 11:28 am

playboy wrote:
okami nmn ininglish mo lang sinabi ko eh hmfp

hehehe

nalawlawagan ti panunot ko

maipapan iti AEG...

agyamanak la unay apo...

hehehe

Back to top Go down
